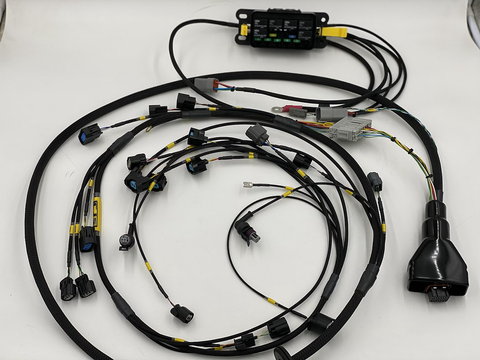

CJS Wiring FUELTECH K-Series (FT450) Engine Harness

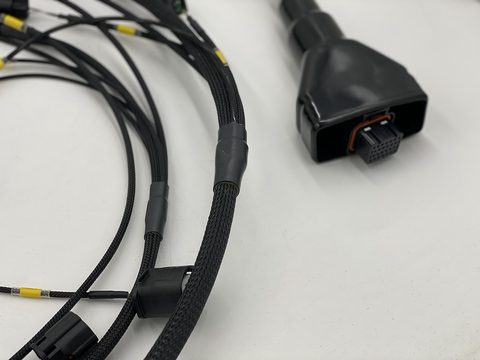

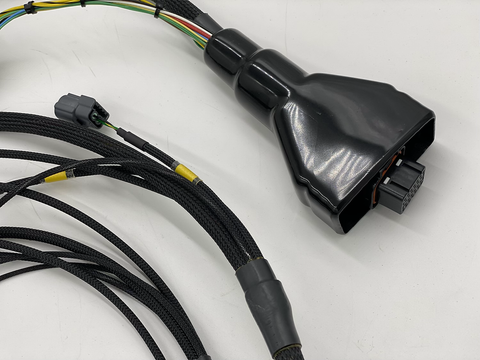

The much requested Fueltech K-Series engine harness in base trim. All base series means is mil-spec tefzel wire sleeved with HIGH TEMP FIIBERGLASS SLEEVING. As always harness comes with pre installed rubber grommet to protect wiring as it passes through the firewall.

Upgrades are also available. Available in both 100% plug n play (requires purchasing chassis sub harness) and standalone race chassis (also requires choosing fusebox style from listing).

The following is prewired into the Base FT450 K-series

Default routing: stealth (Over Valve Cover)

Injectors 1-4 (K-Series)

Coils 1-4 (k-series)

ALT (alternator)

IAT (intake air temp)

TPS (throttle position)

STS (starter solenoid)

RV (reverse lights)

VSS (vehicle speed sensor)

ECT (engine coolant temp)

CMP (cam position/intake)

TDC (top dead center/exhaust)

FPS (fuel pres)

CKP (crank position)

VTC (vtec spool)

VTS (vtec solenoid)

OPS (oil pressure)

CAN A

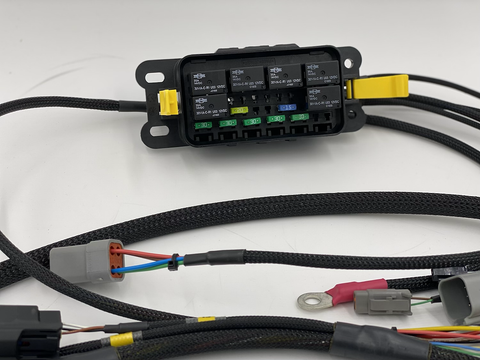

LISTING DOES NOT INCLUDE FUSED RELAY BOX, THAT IS AN ADD ON OPTION VIA SEPERATE LISTING ON WEBSITE

Available upgrade options:

Raychem dr25

Milspec connector

Breakout boots (only with raycgem dr25 heatshrink sleeving)

Detachable injector sub harness

Available in plug n play option by purchasing the chassis subharness that matches your application.
