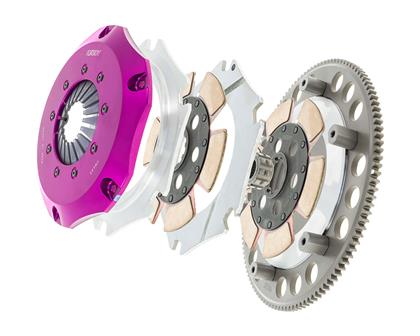

Exedy Hyper Compe-R Twin Cerametallic Clutch Rigid Disc - K Series K20 K24
|Disc Diameter (Inches)||7.9|
|Disc Diameter (Millimeters)||200|
|Kit Contents||CM49S, PP06, IM05, DL01R, DL01R, CH11, DB02, FM55, BS05|
|Spline Size (Inches)||1|
|Spline Size (Millimeters)||26|
|Torque Capacity (ft/lbs.)||563|
|2002 - 2006||RSX||ALL||L4||2.0||ALL||ALL||ALL|
|2004 - 2008||TSX||ALL||L4||2.4||ALL||K24A2||ALL|
|2002 - 2005||CIVIC||SI||L4||2.0||ALL||K20A3||ALL||5Speed Transmission|
|2006 - 2011||CIVIC||MUGEN SI
|2012 - 2015||CIVIC||SI||L4||2.4||ALL||K24Z7||ALL||6Speed Transmission; Requires ECU Reflash|
The new standard for racing clutches is now available, with the EXEDY Hyper Compe Series. The ultralight metal multi-plate was developed with a focus on those interested in racing of all sorts. This fields-proven performer has posted numerous wins and boasts excellent reliability in a variety of leading categories. Exceptionally fast shifting and the lowest possible weight are the features of this competition model.
Available in both Compe-R and Compe-D configuration, drivers are given the choice of rigid or damper discs depending on their needs. Both however come equipped with a lightweight forged aluminum clutch cover and ultra-light drilled chromium-molydenum flywheel, which allows us to achieve the lightest possible setup. Additionally, the grooved center plate provides improved disc release for better disengagement at any RPM.
The Compe-R will be the absolute lightest setup available, utilizing 6 puck, 180mm or 200mm rigid discs. The Compe-R excels in environments such as time attack and Gymkhana, where fast shifting is desired over streetability.
The Compe-D is an updated version of the Compe-R which uses a high-capacity damper disc that protects the drivetrain from damage. The Compe-D is an ultralight metal twin model with damper discs developed for frequent drift and circuit driving along with limited street use.
All EXEDY Racing Hyper Compe Series Clutch Kits carry SFI 1.2/1.5 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports.
PLEASE NOTE: All referenced torque ratings are measured at the wheels.
