FCS RACE AWD HONDA KIT 4X100
Estimated 2-6 weeks to ship after order is placed.
ITS FINALLY HERE! A true bolt in style and conversion with no welding!
FCSRACE AWD Kit for (B and K series 5 speed manual transmission)
- 88-91 Civic / CRX (pre order only)
- 92-95 Civic all models
- 96-00 Civic all models
- 89-93 Integra all models (pre order only )
- 94-01 Integra all models
Includes the following:
- (2) rear trailing arms. heat treated and stress tested for off road use only. (All forms of racing does apply ie: drag, road, circuit, time attack, rally, etc. We do not condone highway public use, however that discretion is on the end user :)
- (2) OEM heat treated rotors, 2 piston billet Wilwood Dynapro calipers, performance pads, wheels studs, oem hubs in 4x100 lug pattern, wheel bearings, lock clips, axles nuts, etc. complete assembly ready out of the box!

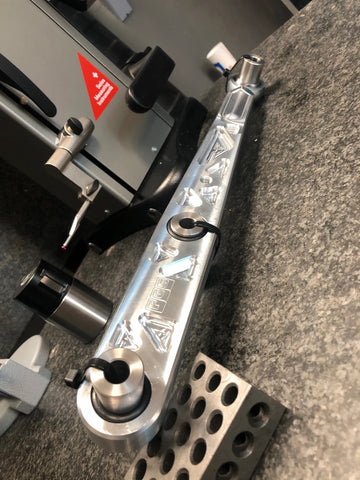

- (2) Camber radius swedge arms, rod ends, hardware etc.
- (2) DOT approved stainless brake line kit with fittings, clips, and hardware for OEM brake line install
- (2) Design pat. adjustable grade 8 toe links

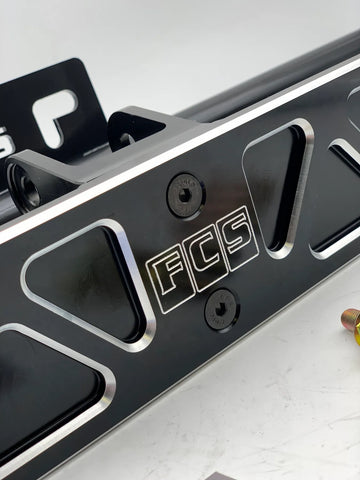

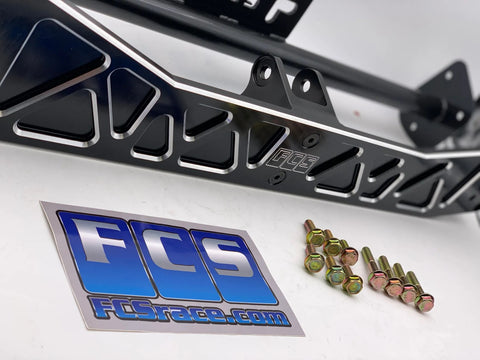

- (1) Rear 2pc bolt in sub frame. (design patent) no need to completely remove your oem subframe and reduce the integrity of your unibody chassis. a small 4" notch is all is called for. this also allows you to retain the oem structure if you wish to convert back to fwd just keep the cut portion.
This unit will allow both WAGON and CRV/ELEMENT rear differentials and axles in the same kit! no need to chase one or the other and be married to it. you can now interchange and swap when you come across something better!

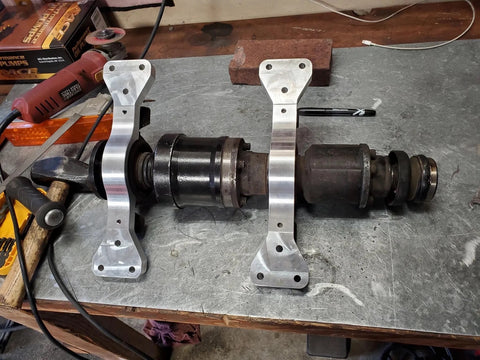

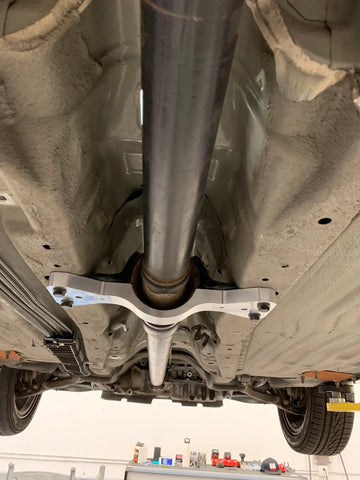

(1) Carrier bearing kits for 2 styles of drive shafts. Wagovan and CRV/Pilot/Element included (must choose at checkout)
(1) (LIMITED TIME ONLY) FREE PAIR OF HD AXLES WHEN PURCHASING OUR KIT!
Options allows you to shorten the axle kit up to 1.5” of track for those who wish to tuck wider tires & slicks with the addition of our adjustable LCAs!
OR you can simply stay factory, with long axles for OE setup to track your wheels out to the edge of the quarter panels! choice is yours!
TESTED UP TO 1000HP!
Works with 88-91 WAGON MUST BE USED WITH MATING DIFFERENTIAL
98-01 & 2002-2006 CRV, Element Pilot rear differential and drive shaft.
DONOR PARTS NEEDED TO COMPLETE THIS KIT ;
- 98-01 HONDA CRV MANUAL 5 SPEED TRANSMISSION, SHIFTER BOX AND CABLES
- 02-06 HONDA CRV MANUAL 5 SPEED TRANSMISSION, SHIFT BOX AND CABLES (CAN WORK WITH K TUNED SHIFTER ETC)
- 88-91 CIVIC WAGON 4RT REAR DIFFENTIAL, DRIVESHAFT, AND AXLES
- 02-06 CRV/PILOT/ELEMENT REAR DIFFERENTIAL, DRIVESHAFT, AND AXLES
ALL KITS MUST USE EQUAL LENGTH axles WHETHER YOU CHOSE TO OFFSET YOUR REAR WHEELS IN OR OUT OF THE QUARTER PANEL.
