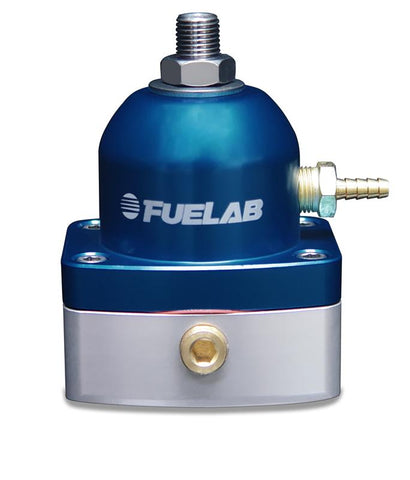

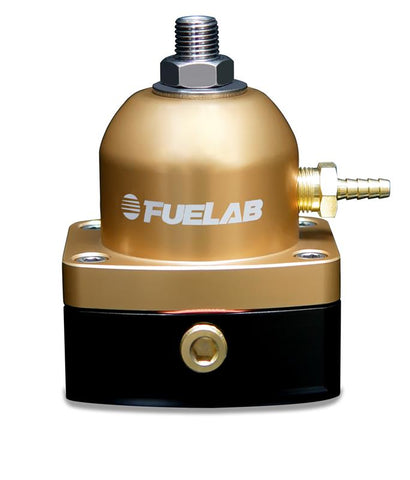

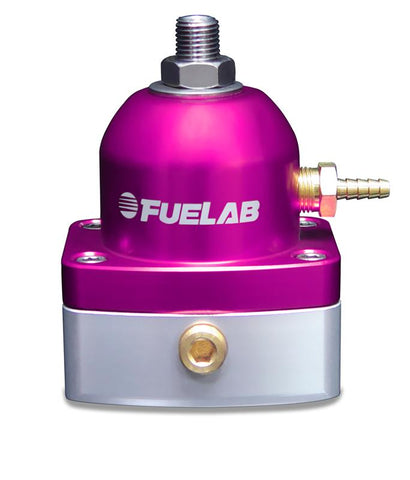

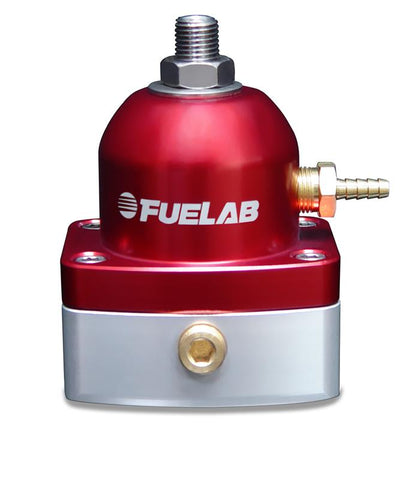

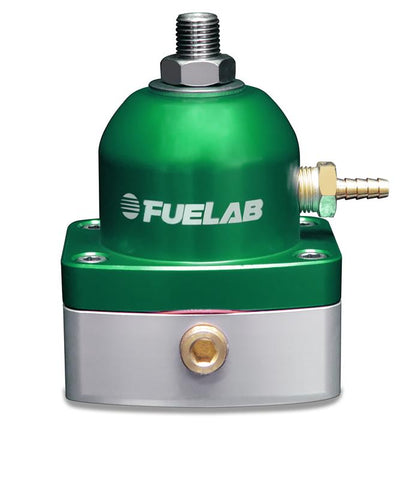

Fuel Lab 54501 Universal Fuel Pressure Regulator

Fuel Lab

  • $174.32


Mini In-line Fuel Pressure Regulator -6AN Inlets / Standard Seat / EFI (25-90 PSID)

54501 Fuel Pressure Regulator

Item-detailsFUELAB® 545 Series Fuel Pressure Regulators have all the same great features as our 525 series, only smaller and weigh 50% less. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting fuel injected applications up to 125 PSID. The 545 Series has its return port in-line with the inlet port (not on the bottom) which allows for easy installation in extremely tight locations.

Dimensions: 1.50” D x 2.00” W x 2.25” H

Weighs Only: 5.25 oz.

Regulator Features

  • In-Line style makes easy installation as Universal rail mount
  • -6AN inlet and -6AN return port in-line
  • Gasoline, diesel, methanol, and ethanol fuel compatible
  • Billet Aluminum with anodize per military MIL-A-8625, Type II
  • Fine thread pitch for precise pressure adjustment
  • Versatile mounting bracket and stainless steel hardware
  • 1/8” NPT gauge port with plug for external pressure gauge
  • 1/8” NPT pressure reference port with barbed fitting
  • Backed by a 2-year limited warranty

54501-C -6AN Inlets / Standard Seat / EFI (25-90 PSID)
