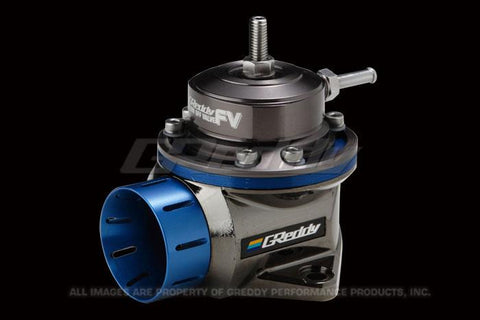

GReddy Type FV Universal BOV - Floating Design
The GReddy FV Blow Off Valve is a new generation of blow off valve/ The unique "Floating Valve" design incorporates a revised adjustable dual spring system, while maintaining the advantages of the previous models' push valve structure and silicone diaphragm control. The improved design makes spring preload setting less dependent on the idle, while providing increased response, valve travel, flow and resistance to premature valve lift under all conditions.
The GReddy FV adopts the same mounting and outlet size and position as previous GReddy RS and RZ models, so retro-fitting to existing applications is possible.
| Item: | Blow-off Valve |
|---|---|
| Type: | Type FV |
| Size: | 40mm |
| Notes: |

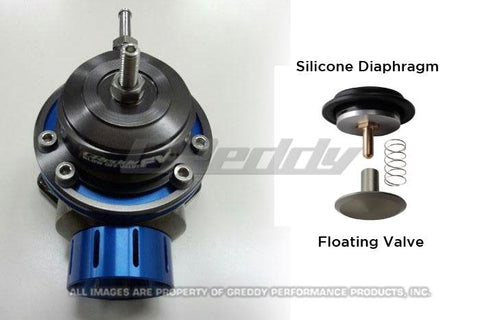

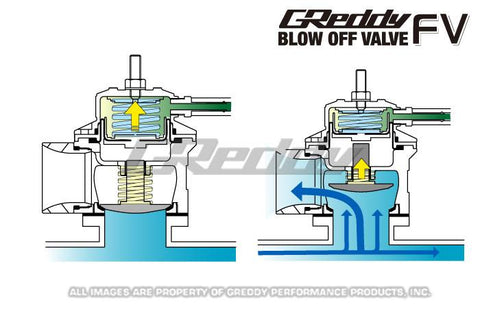

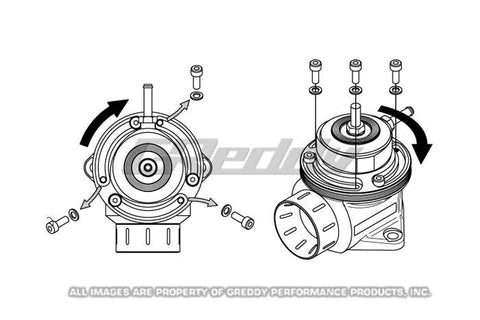

GReddy BLOW OFF VALVE FV has adapted Floating Valve structure which does not open up when the Surge Tank has negative pressure. For no strong initial load, both quick response under low boost and prevention of the relief under high pressure are together. This is a new generation blow off valve. Gunmetal/Blue, adjustable floating valve, revised funnel outlet (Blue) Floating Valve design with opposing springs, alows for improved control, response and idle. New top hat design allow for rotating of the vacuum nipple without disassmebly of the unit. 80-480hp range BOV gasket, nuts & bolts Compatiable with standard 2-bolt GReddy BOV flanges and Type-RZ outlet adapters. o To install this product, the GReddy blow off valve mounting flange is required. |
