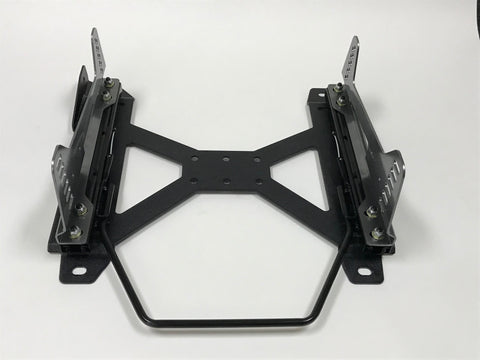

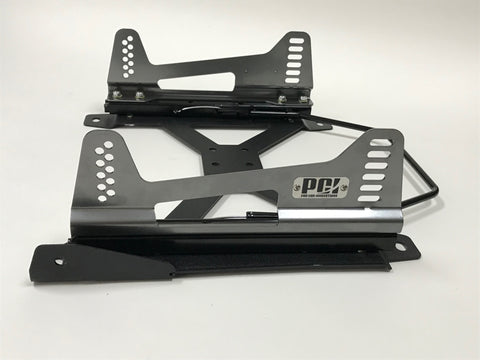

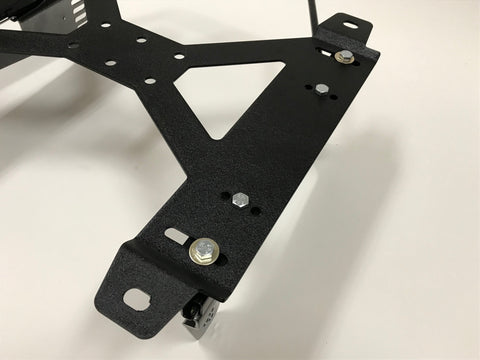

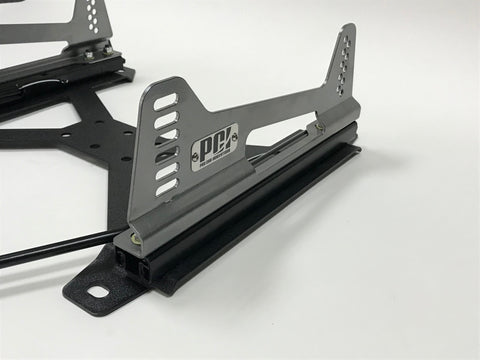

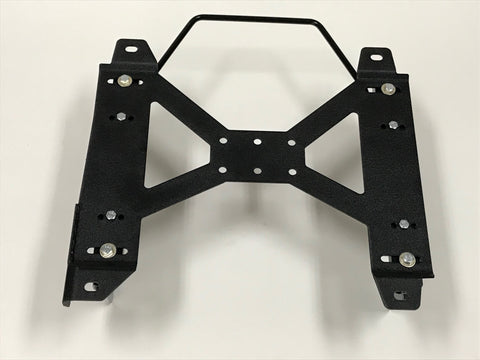

Pro Car Innovations (PCI) Slider Seat Mounts
**MADE WHEN ORDERED. ESTIMATED 2-4 WEEK BUILD TIME**
Wondering how to mount that new race seat? Pro Car Innovations Racing Spec Seat Mounts takes the guessing game out of this install. Finding the correct seat brackets can be almost impossible where most end up with a self-fabricated mount. The PCI S1 sliders are one of the strongest sliders available. Each slider bolts to the base with 4 bolts making them twice as strong as 2 bolt mounting. PCI has invested the research in order to create an ingeniously crafted safe design that’s easily adjustable to accommodate multiple applications. Our Slider Seat Mounts are designed to bolt directly to the factory seat mount locations and simplify that new race seat install.
1/8” steel vs. 3/16” steel
Our mounts are laser cut and cnc formed completely from one piece for strength, stiffness and weight savings. With our design we can achieve the same strength if not more than 3/16″ steel by having bends and altering the shape to areas where increased strength and stiffness is required. So don’t be fooled by thicker heavier steel is better. 3/16” steel is more widely used for the simplicity of design and manufacturing putting more money in there pocket and less in yours. When your design requires welded on mounting legs 3/16″ steel is your only design option. Our mounts will exceed the strength of the seat and floor they’re bolted to.
Features
- Precision CNC laser cut and bent from one piece of 1/8” 3mm carbon steel
- Multi way adjustability
- PCI S1 high strength sliders, mounts to base with 4 bolts per slider
- 5 and 6 point sub belt mounting locations
- Single tool adjustments with bottom locking hardware
- grade 10.9 8mm hardware
- Powder coated base and side mounts
- ¼” black nylon side mount spacers
- Stainless steel laser etched logo plates
Benefits
- CNC bent one piece design allows for use of lighter 1/8” steel vs. heavy 3/16”
- No modifications to any PCI seat mount components are required for installation
- Uniquely designed for each car for the best possible fitment
- Mounts to factory bolt locations with precise factory fitment
- 5 and 6 point sub belt mounting
Specs
- 3mm carbon steel base and side mounts
- CNC laser cut, CNC bent
- Powder coated base and side mounts
- Gun metal grey, or matte black side mounts
- Zinc plated grade 8 hardware
- 14-3/4”(375mm) to 17-1/2”(445mm) width adjustments (standard side mounts)
- 16”(375mm) to 18-3/4”(445mm) width adjustments (wide side mounts)
- 9 5/8”(246mm) range front to back adjustments
MSRP: $295 (Complete Seat Mount Kit with standard side mount) ***Wide side mounts are available upon request***
Please contact sales@revlinekc.com for any questions or applications not listed.
Part Number | Available Applications |
SM-350-R-S1 | 02-08 NISSAN 350Z SLIDER SEAT MOUNT (RIGHT) |
SM-350Z-L-S1 | 02-08 NISSAN 350Z SLIDER SEAT MOUNT (LEFT) |
SM-370Z-L-S1 | 09 NISSAN 370 Z SLIDER SEAT MOUNT (LEFT) |
SM-370Z-R-S1 | 09 NISSAN 370 Z SLIDER SEAT MOUNT (RIGHT) |
SM-88EF-L-S1 | 88-89 CIVIC SLIDER SEAT MOUNT (LEFT) |
SM-88EF-R-S1 | 88-89 SLIDER SEAT MOUNT (RIGHT) |
SM-90EF-L-S1 | 90-91 CIVIC SLIDER SEAT MOUNT (LEFT) |
SM-90EF-R-S1 | 90-91 CIVIC SLIDER SEAT MOUNT (RIGHT) |
SM-911-S1 | 1999 PORSCHE 911 SLIDER SEAT MOUNT (LEFT/RIGHT) |
SM-92DS-L-S1 | 92-95 HONDA DELSOL SLIDER SEAT MOUNT (LEFT) |
SM-92DS-R-S1 | 92-95 HONDA DELSOL SLIDER SEAT MOUNT (RIGHT) |
SM-AP2-R-S1 | 06 HONDA S2000 AP2 SLIDER SEAT MOUNT (RIGHT) |
SM-CRX-L-S1 | 88-91 CRX PCI SLIDER SEAT MOUNT (LEFT) |
SM-CRX-R-S1 | 88-91 CRX SLIDER SEAT MOUNT (RIGHT) |
SM-DA-L-S1 | 89-93 INTEGRA SLIDER SEAT MOUNT (LEFT) |
SM-DA-R-S1 | 89-93 INTEGRA SLIDER SEAT MOUNT (RIGHT) |
SM-DC2-L-S1 | 94-01 INTEGRA SLIDER SEAT MOUNT (LEFT) |
SM-DC2-R-S1 | 94-01 INTEGRA SLIDER SEAT MOUNT (RIGHT) |
SM-DC5-L-S1 | 01-06 ACURA RSX SLIDER SEAT MOUNT (LEFT) |
SM-DC5-R-S1 | 01-06 ACURA RSX SLIDER SEAT MOUNT (RIGHT) |
SM-E46-L-S1 | 99-06 BMW 3 SERIES SLIDER SEAT MOUNT (LEFT) |
SM-E46-R-S1 | 99-06 BMW 3 SERIES SLIDER SEAT MOUNT (RIGHT) |
SM-E92-L-S1 | 07-13 BMW 3 SERIES SLIDER SEAT MOUNT (LEFT) |
SM-E92-R-S1 | 07-13 BMW 3 SERIES SLIDER TYPE SEAT MOUNT (RIGHT) |
SM-EG-L-S1 | 92-95 CIVIC SLIDER SEAT MOUNT (LEFT) |
SM-EG-R-S1 | 92-95 CIVIC SLIDER SEAT MOUNT (RIGHT) |
SM-EK-L-S1 | 96-00 CIVIC SLIDER SEAT MOUNT (LEFT) |
SM-EK-R-S1 | 96-00 CIVIC SLIDER TYPE SEAT MOUNT (RIGHT) |
SM-EM-L-S1 | 01-05 HONDA CIVIC SLIDER SEAT MOUNT (LEFT) |
SM-EM-R-S1 | 01-05 HONDA CIVIC SLIDER SEAT MOUNT (RIGHT) |
SM-EVOX-L-S1 | 08-15 EVO 10 SLIDER SEAT MOUNT (LEFT) |
SM-EVOX-R-S1 | 08-15 EVO 10 SLIDER SEAT MOUNT (RIGHT) |
SM-FG-L-S1 | 06-11 CIVIC SLIDER SEAT MOUNT (LEFT) |
SM-FG-R-S1 | 06-11 CIVIC SLIDER SEAT MOUNT (RIGHT) |
SM-FRS-L-S1 | 13 SCION FRS,2013 SUBARU BRZ SLIDER SEAT MOUNT (LEFT) |
SM-FRS-R-S1 | 13 SCION FRS, 2013 SUBARU BRZ SLIDER SEAT MOUNT (RIGHT) |
SM-S2K-AP1-R-S1 | 99-05 HONDA S2000 AP1/AP2 SLIDER SEAT MOUNT (RIGHT) |
SM-S2K-L-S1 | 1999-2010 HONDA S2000 AP1/AP2 SLIDER SEAT MOUNT (LEFT) |
