2003-2007 Honda Accord V6 M/T ECU JUMPER

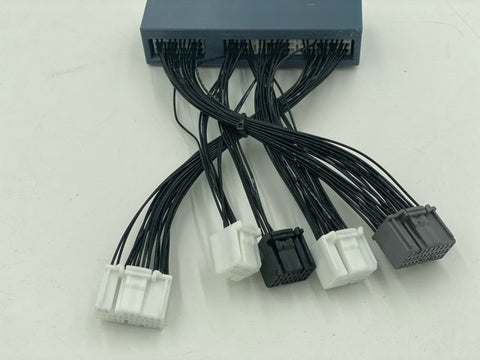

2003-2007 Accord V6 M/T ecu adapter kit for using a 2007-2008 Acura TL V6 M/T with CanBus Adapter.
Adapter is built using M22759/16-22 spec wire no TXL wire is used. All connections are crimped and NOT soldered. Solder can be considered one of the weakest points in any wiring project as it can crack and cause intermittent signal issues.
This design will feature a crimp style header to allow for future serviceability in case the inevitable happens and a wire breaks. Because of the placement of the ECU this may or may not happen. If it does, a simple re-crimp will fix the issue. Whereas with the potted design, once/if a wire break occurs, then you will not be able to serviced.
For those who do not know what potting is, potting is essentially created a mold/housing around the pins, that will be soldered. Once all the pins are soldered, the mold is then filled with epoxy resin which hardens. Securing the soldered pins/wire in place. Which help against vibration and solder breaking. But if the wire breaks your screwed because you can no longer access the ends of the wire in the resin.
What is included in the kit:
1 x Ecu Adapter
1 x CanBus Adapter
With this harness, you will also need:
- TL FLASHPRO
- A new or used ECU from the 2007-2008 TL (MT) or 2007 TL Base (AT)
ECU Part Number
|RDA-A83 through RDA-A84||
2007 Acura TL Base Auto*
|RDB-A02 through RDB-A04||
2007 Acura TL MT Type-S
|RDB-A11 through RDB-A12||
2008 Acura TL MT Type-S
* The Auto ECU needs a hardware modification for cruise control to work.
